Dragon Fire Performance 8pc IGN-1A Smart Ignition Coil Pack For All Vehicles using Aftermarket Management Systems Replaces MSD 556-112

•MANUFACTURER: Dragon Fire Performance
•Compatible with most aftermarket electronic fuel injection systems, rated for 12v or 16v electrical systems, 72mm Bolt Spacing, HEI Plug Wire Connection, **Be Sure to Check for Correct Fitment Using the Information Below.
•FEATURES: Watertight, weatherproof connector designed using advance thermoplastics to resist fracture and cracking from heat and thermal cycling, tested and ensured to meet and exceed OE output voltage, high-temp exterior housing construction to prevent voltage leaks and RFI interference, performance grade primary & secondary bobbins with premium copper windings to ensure peak performance under load and extended service life.
For Purpose Built Competition Engines Only. Engines which are exclusively designed and built for competition can not be registered and may never be used outside of their intended purpose.
•EASY DIY Plug and Play Install for most applications. Perfect for any professional or weekend mechanic.

Manufactured under strict ISO 9001 and IATF 16494 certification to provide more reliable spark energy and more efficiency than most other IGN-1A style coils. Specially designed for the most powerful spark possible. Precision injection molded for weatherproof connections using advance thermoresistant plastics to resist fracture and cracking from radiant heat and thermal cycling. High-temp epoxy filled construction to prevent voltage leaks and RFI interference. High Performance grade primary & secondary bobbins with premium copper windings, enlarged iron core, and premium grade IGBT to ensure peak performance under load and extended service life.

For Purpose Built Competition Engines Only. Engines which are exclusively designed and built for competition can not be registered and may never be used outside of their intended purpose.


COIL SPECS
Coil Style: Coil Pack
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 50,000 V
Peak Current: 419 mJ (20V Input)
Secondary Resistance: 6.62K ohms
Inductance: 5.2 mH
Spark Duration: 2.5 ms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square

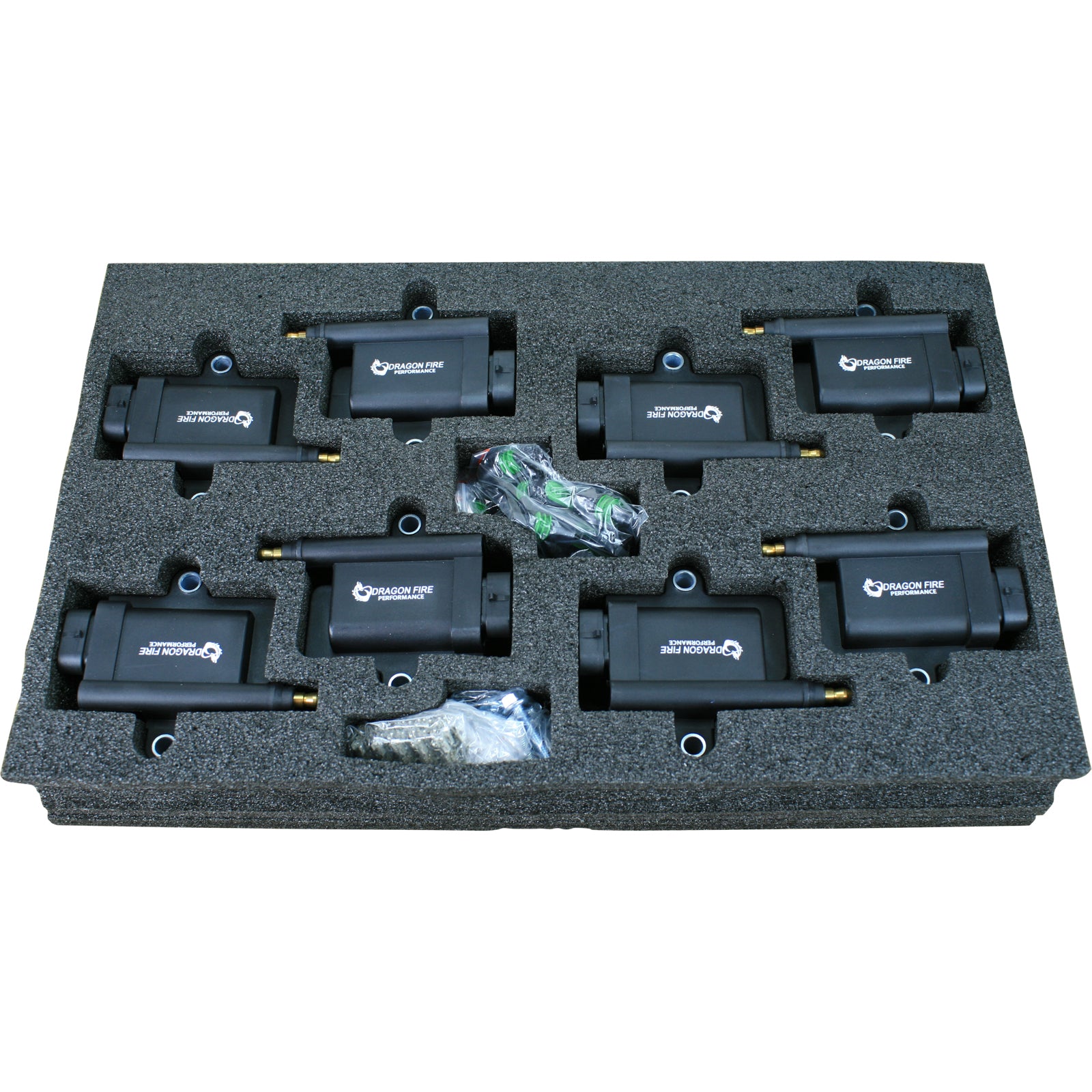

Quantity: Sold as a set of 8
Replaces OEM Part Number: IGN-1A

Fitment

Popular Fitment:
1997-2020 GM LS/LT V8, IGN-1A Type
2001-2005 Mazda Miata
1992-2002 Honda
And More…..

All vehicles using aftermarket engine management systems.

Part Numbers

LS IGN-1A
AEM 30-2853
Holley 556-112
Haltech HT-020114
Pro EFI HO 8005
Mercury Marine Optimax 300-879984T01
Mercury Marine Optimax 300-8M0077471
Mercury Marine Optimax 339-879984A1
Mercury Marine Optimax 339-879984T00
Mercury Marine Optimax 8M0077471
Mercury Marine Optimax 879984T01
Mercury Marine Optimax 879984A1
