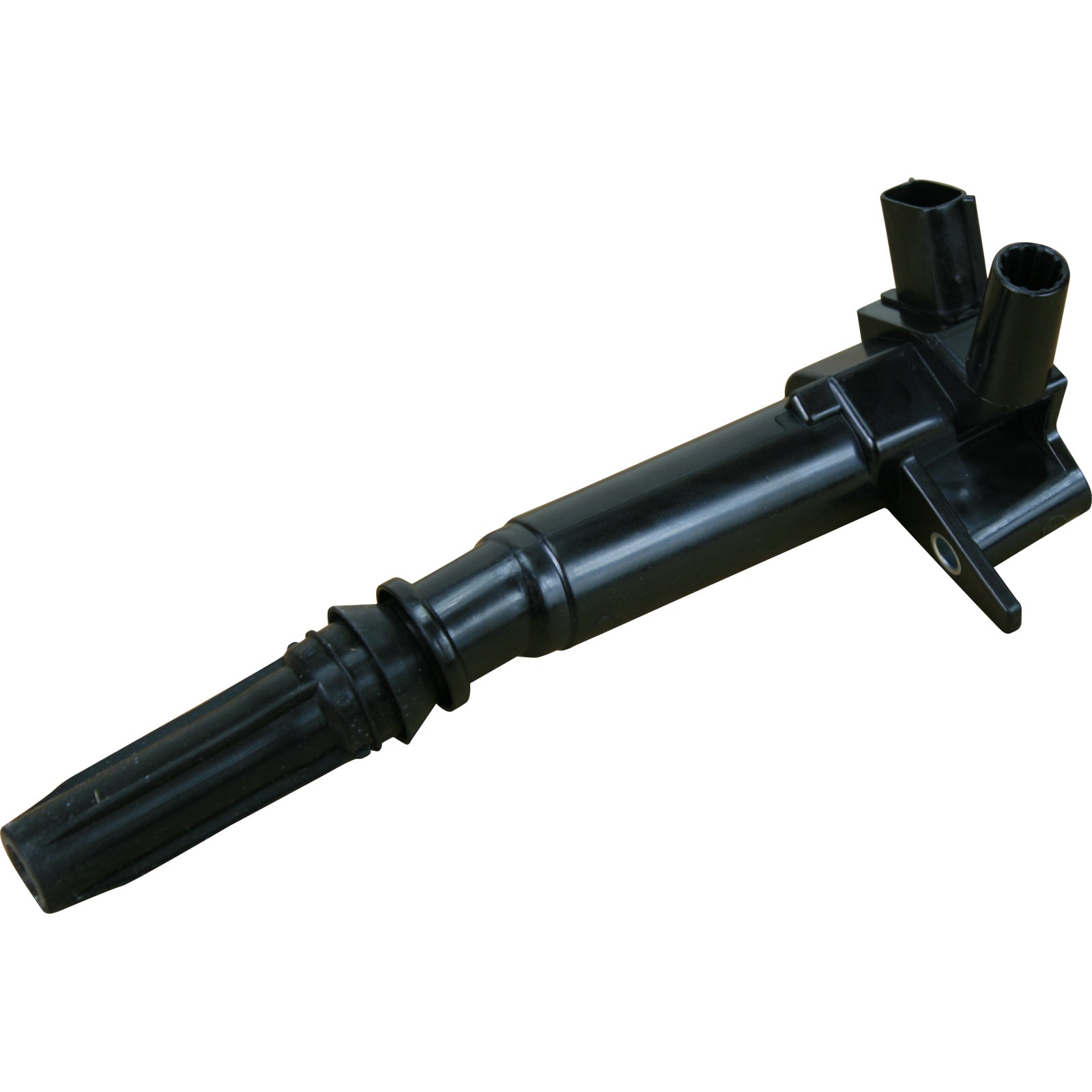

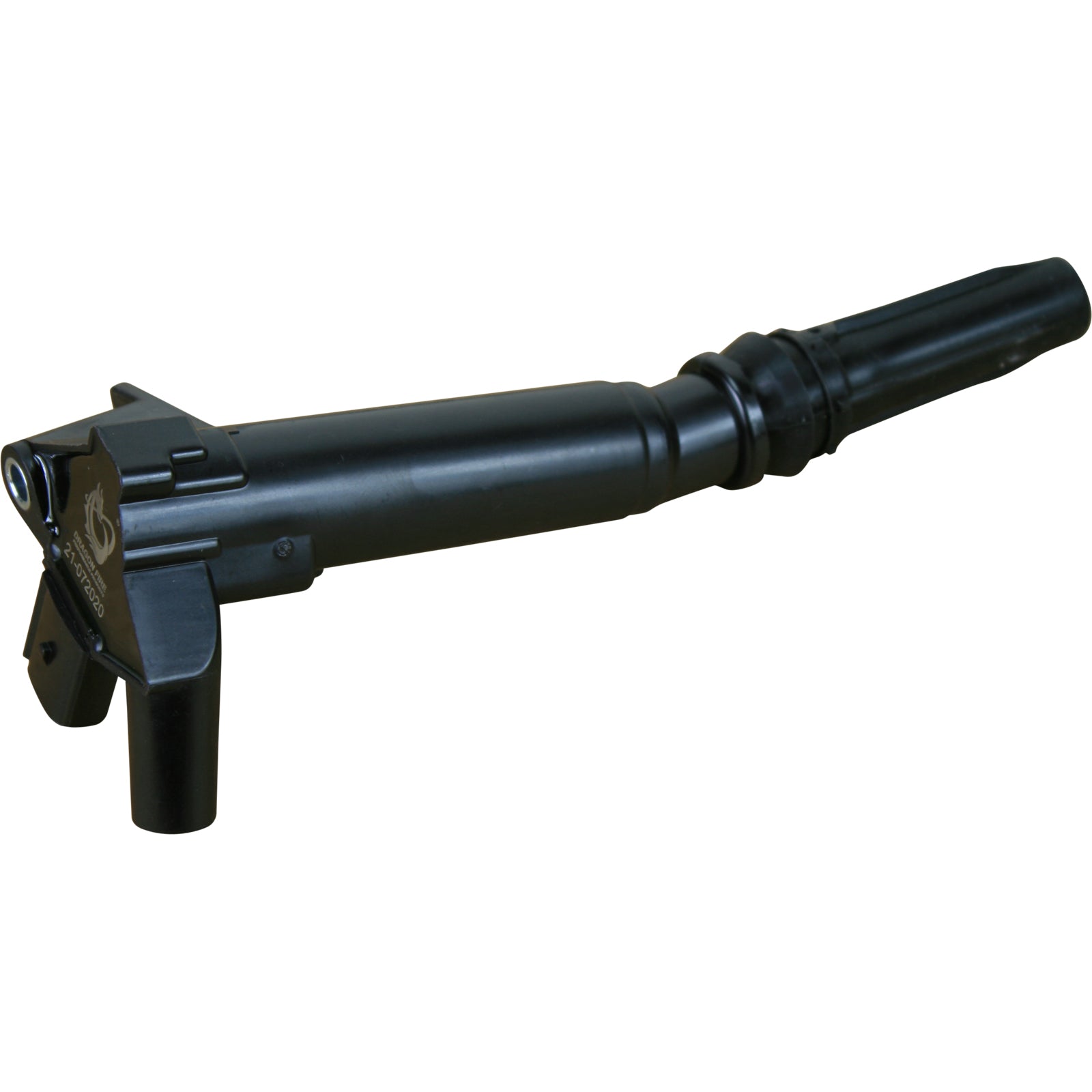

Dragon Fire Performance 8pc Ignition Coil Power Pack Tune Up Set Kit For 2011-2017 Ford Raptor F-150 F-250 F-350 E-350 Super Duty 6.2L V8 Right & Left Side

•BRAND: Dragon Fire Performance
•UP TO 15% MORE ENERGY - OEM GRADE DURABILITY
•DIRECT FACTORY REPLACEMENT PART - PLUG AND PLAY
•COMPATIBLE WITH 2011-2017 Ford Raptor, F-150, F-250, F-350, & E-350 Super Duty with 6.2L V8 **Be Sure to Check for Correct Fitment Using the Information Below.

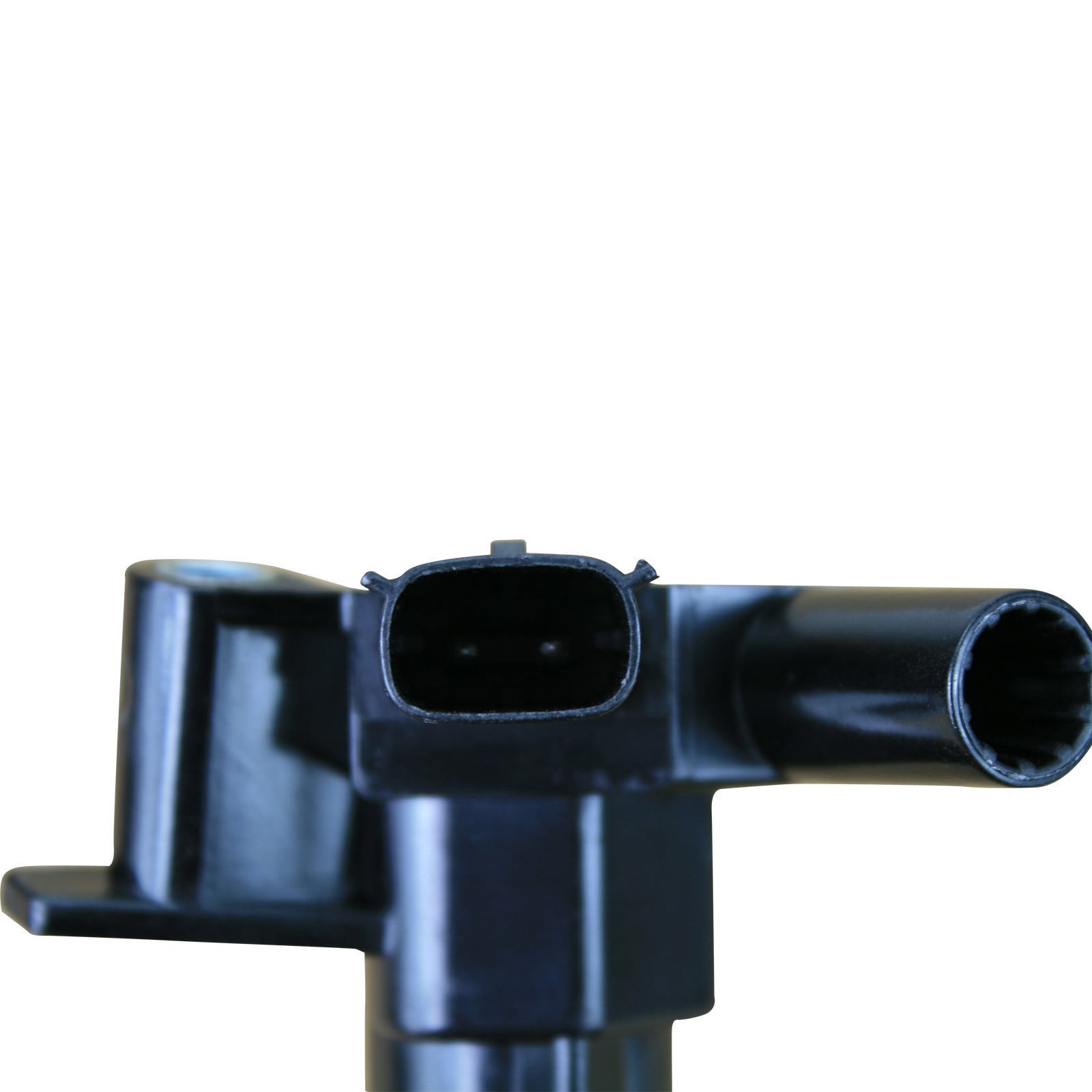

•FEATURES: Watertight, weatherproof connector designed using advance thermoplastics to resist fracture and cracking from heat and thermal cycling, tested and ensured to meet and exceed OE output voltage, high-temp exterior housing construction to prevent voltage leaks and RFI interference, performance grade primary & secondary bobbins with premium copper windings to ensure peak performance under load and extended service life. 1 YEAR WARRANTY

Manufactured under strict ISO 9001 and IATF 16494 certification to provide reliable spark energy and complete combustion. Precision injection molded for weatherproof connections using advance thermoresistant plastics to resist fracture and cracking from radiant heat and thermal cycling. High-temp epoxy filled construction to prevent voltage leaks and RFI interference. Performance grade primary & secondary bobbins with premium copper windings to ensure peak performance under load and extended service life. Tested and ensured to meet or exceed OE output voltage and parameters.

COIL SPECS
Coil Style: Coil on Plug
Primary Resistance: 0.390 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 38,000 V
Secondary Resistance: 35.2K ohms
Inductance: 3.0 mH
Spark Duration: 2.2 ms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round

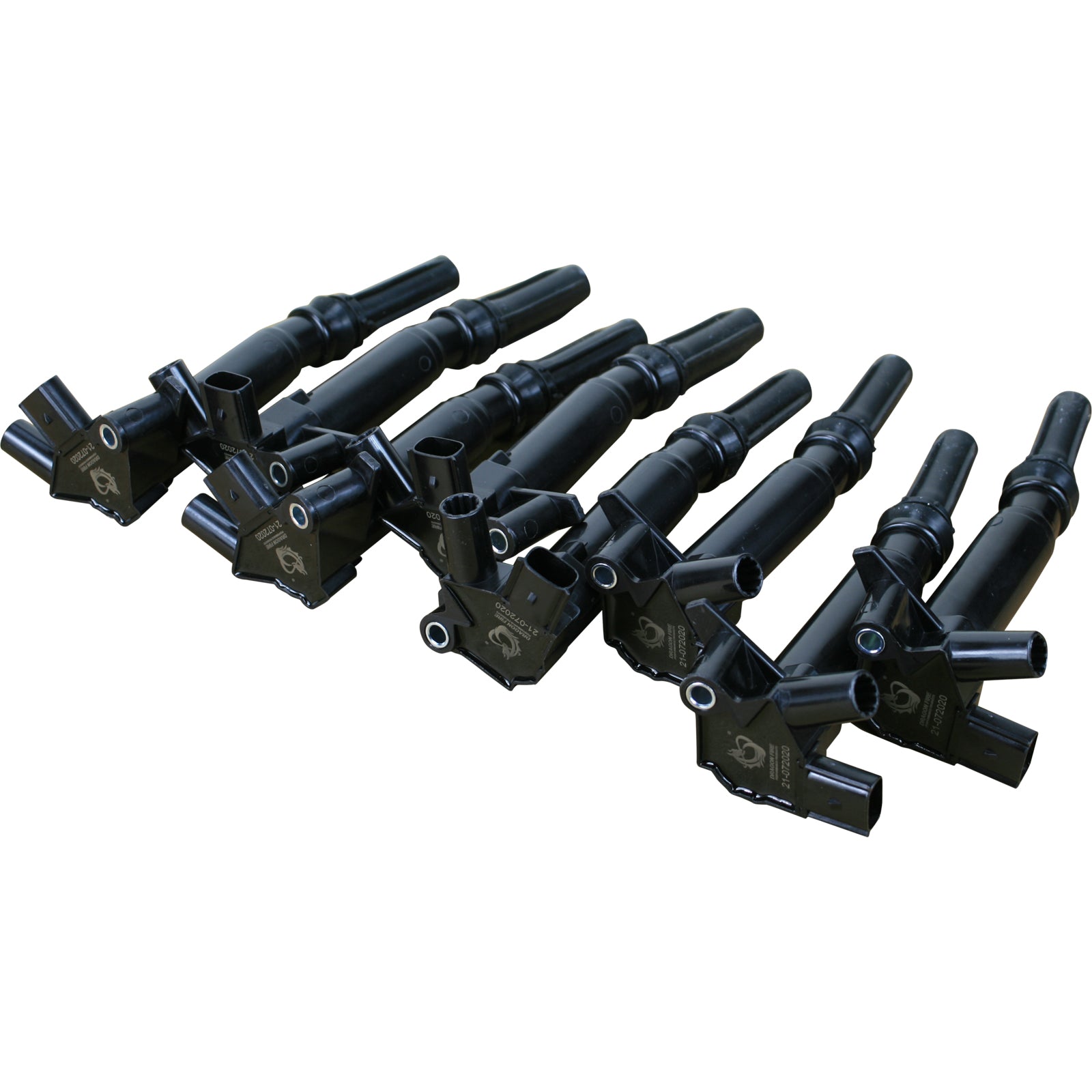

Quantity: Sold as a set of 8
Note: (Left and Right Side)
Replaces OEM Part Number: AL3Z12029A, AL3E12029AC, AL3Z12029B, AL3E12029BC, DG526, DG525

Fitment

2017 Ford E-350 Super Duty 6.2L V8 FLEX SOHC Right Bank RWD
2010-2014 Ford F-150 6.2L V8 SOHC Passenger Side 4WD
2011-2017 Ford F-250 Super Duty 6.2L V8 FLEX SOHC RWD Right
2011-2014 Ford F-350 6.2L V8 SOHC RWD Right
2011-2017 Ford F-350 Super Duty 6.2L V8 FLEX SOHC RWD Right
2011-2014 Ford Lobo 6.2L V8 SOHC RWD Right

Part Numbers

AL3Z12029A
AL3E12029AC
AL3Z12029B
AL3E12029BC
DG526
DG525
?UF631
DG-525
AL3E-12029-AC
UF639
AL3E-12029-BC
C1800
UF-631
UF631
C1801
UF-639
UF639
